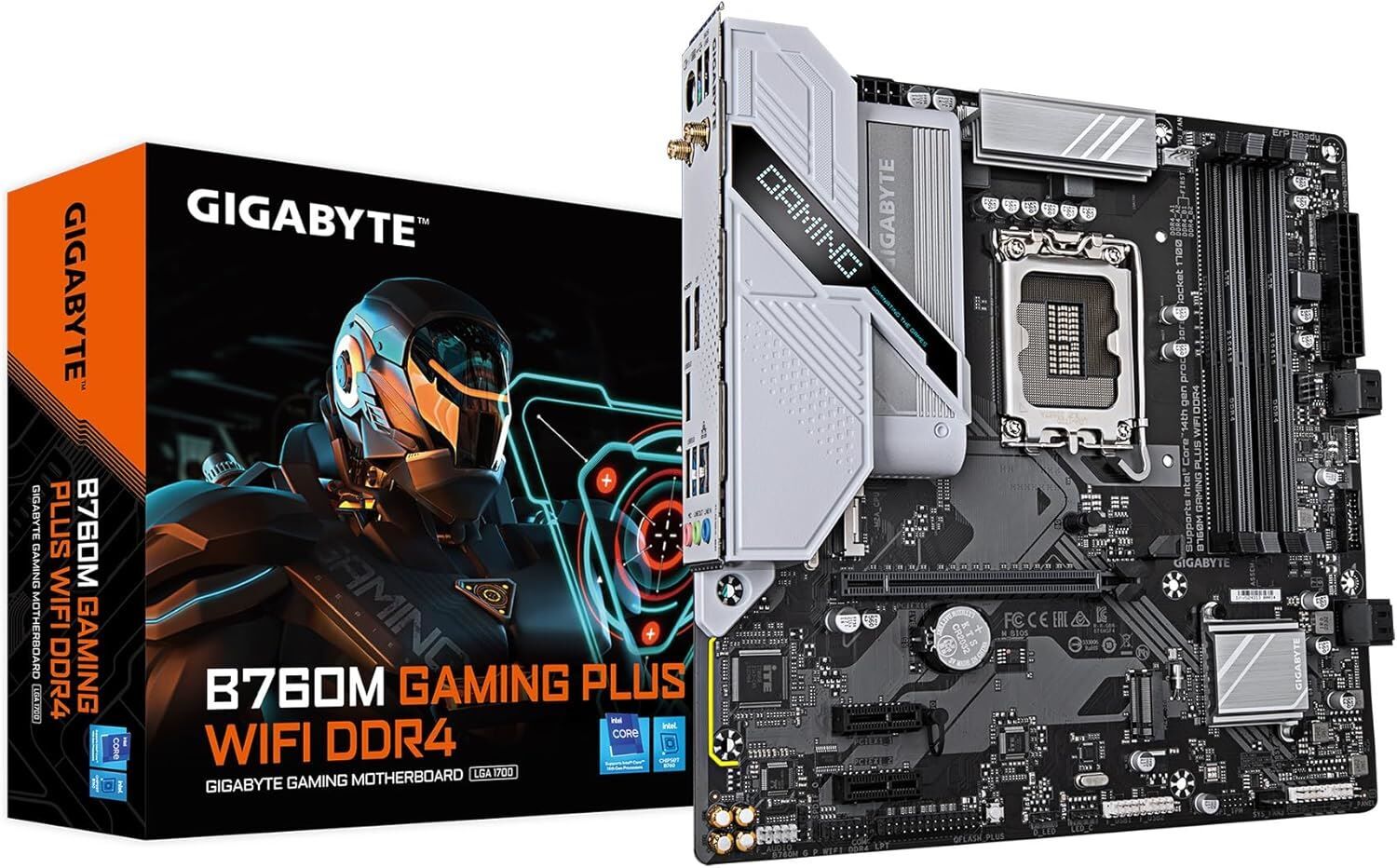

GIGABYTE GAMING PLUS B760M DDR4 HDMI DP PCIE 4.0 1700p mATX
GIGABYTE GAMING PLUS B760M DDR4 ariyorsaniz dogru yerdesiniz. Bu sayfada GIGABYTE GAMING PLUS B760M DDR4 hakkinda tum teknik ozellikler yer almaktadir.
Teknik Bilgiler
| İşlemci Soket Tipi | 1700 |
| Chip Set | Intel B760 |
| Ram Slot Sayısı | 4 Adet |
| Max Ram Desteği | 128GB |
| RAM Tipi | DDR4 |
| Ram Frekans Hızı | 3466 MHz,3600 MHz,3666 MHz,3733 MHz,3800 MHz,3866 MHz,4133 MHz,4266 MHz,4300 MHz,4400 MHz,4500 MHz,4600 MHz,4700 Mhz,4933 MHz,5000 MHz,5133 MHz,5333 MHz,4000 MHz,4800 MHz,2133 MHz,2400 MHz,2666 MHz,2800 MHz,2933 MHz,3000 MHz,3100 MHz,3200 MHz,3300 MHz,3333 MHz,3400 MHz |
| İşlemci Desteği | Intel Pentium,Intel Core i9,Intel Core i7,Intel Core i5,Intel Core i3,Intel Celeron |
| Anakart Boyutu | Micro ATX |
| USB 3.2 | 5 Adet |
| USB 3.1 | Yok |
| USB 3.0 | Yok |
| USB 2.0 | 8 Adet |
| eSata | Yok |
| Bluetooth | Yok |
| PCI Express 4.0 x16 | 1 Adet |
| PCI Express 3.0 x16 | Yok |
| PCI Express 2.0 x16 | Yok |
| PCI Express x16 | Yok |
| PCI Express x1 | 1 Adet |
| PCI Slot | Yok |
| M.2 Slotu | 3 Adet |
| Sata 6Gb/s | 4 Adet |
| D-Sub | Var |
| DVI | Yok |
| HDMI | Var |
| DP (Display Port) | Var |
| Lan Hızı | 2.5 Gbit/ 1 Gbit/100 Mbit |
| Lan Çıkış Sayısı | 2 Adet |
| Wireless Bağlantı | Yok |
| Ses Chip Set | Realtek Audio CODEC |
| Ses Kanal Sayısı | 7.1 Kanal |
| Görüş Açısı (Yatay / Dikey) | 160/140 |
| Satış Garanti Süresi (ay) | 24 |
| EAN | 4719331862855 |
Detaylı Bilgiler
| CPU | LGA1700 socket Supports 14th / 13th / 12th Gen Intel® Core™, Pentium® Gold, Celeron® L3 cache varies by CPU (Refer to CPU Support List) |
| Chipset | Intel® B760 Express Chipset |
| Memory | DDR4 5333(O.C.) ~ 2133 MT/s support 4× DIMM, up to 128GB Dual Channel ECC/Non-ECC UDIMM support (ECC runs in non-ECC mode) XMP support |
| Onboard Graphics | Intel® HD Graphics HDMI: 4096×2160@60Hz (HDMI 2.1, HDCP 2.3) DisplayPort: 4096×2304@60Hz (DP 1.2, HDCP 2.3) Triple-display support |
| Audio | Realtek® Audio CODEC HD Audio, 2/4/5.1/7.1-channel S/PDIF Out support |
| LAN | Realtek® GbE LAN (1Gbps) |
| Wireless | Realtek® Wi-Fi 6 RTL8851BE WiFi a/b/g/n/ac/ax (2.4/5GHz) Bluetooth® 5.3 11ax 160MHz support |
| Expansion Slots | CPU: - 1× PCIe x16 (PCIe 4.0 x16) Chipset: - 2× PCIe x1 (PCIe 3.0 x1) |
| Storage | CPU: - 1× M.2 (2280 PCIe 4.0 x4/x2) (M2A_CPU) Chipset: - 1× M.2 (2280 PCIe 4.0 x4/x2) (M2P_SB) - 4× SATA 6Gb/s RAID 0 / 1 / 5 / 10 |
| USB | USB 3.2 Gen1: - 1× Type-C (internal) - 3× rear - 2× internal USB 2.0: - 2× rear - 4× internal (Hub) |
| Internal I/O | 24-pin ATX 8-pin CPU 12V 1× CPU fan 3× system fan ARGB header RGB header 2× M.2 sockets 4× SATA 6Gb/s Front panel headers USB Type-C header (USB 3.2 Gen1) USB 3.2 Gen1 header 2× USB 2.0 headers TPM header Serial + Parallel header S/PDIF Out header Q-Flash Plus button Reset jumper / Clear CMOS jumper |
| Back Panel | 2× USB 2.0 PS/2 combo port 2× SMA antenna connectors 1× DisplayPort 1× HDMI 3× USB 3.2 Gen1 1× RJ-45 LAN 3× audio jacks |
| I/O Controller | iTE® Controller Chip |
| H/W Monitoring | Voltage / Temperature / Fan speed detection Water flow detection Fan fail warning Fan speed control |
| BIOS | 128 Mbit flash AMI UEFI BIOS PnP 1.0a, DMI 2.7, ACPI 5.0 |
| Unique Features | GIGABYTE Control Center (GCC) Q-Flash Q-Flash Plus |
| Bundled Software | Norton® Internet Security (OEM) LAN Manager Software |
| Operating System | Windows 11 64-bit Windows 10 64-bit |
| Form Factor | Micro-ATX — 24.4cm × 24.4cm |
GIGABYTE GAMING PLUS B760M DDR4 ile ilgili merak ettiginiz sorularin yanitini asagidaki detay tablosunda bulabilirsiniz. GIGABYTE GAMING PLUS B760M DDR4 hakkinda daha fazla bilgi icin sayfayi incelemeye devam edin.
GIGABYTE GAMING PLUS B760M DDR4 ile ilgili merak ettiginiz sorularin yanitini asagidaki detay tablosunda bulabilirsiniz. GIGABYTE GAMING PLUS B760M DDR4 hakkinda daha fazla bilgi icin sayfayi incelemeye devam edin.
GIGABYTE GAMING PLUS B760M DDR4 ile ilgili merak ettiginiz sorularin yanitini asagidaki detay tablosunda bulabilirsiniz. GIGABYTE GAMING PLUS B760M DDR4 hakkinda daha fazla bilgi icin sayfayi incelemeye devam edin.
GIGABYTE GAMING PLUS B760M DDR4 ile ilgili merak ettiginiz sorularin yanitini asagidaki detay tablosunda bulabilirsiniz. GIGABYTE GAMING PLUS B760M DDR4 hakkinda daha fazla bilgi icin sayfayi incelemeye devam edin.
GIGABYTE GAMING PLUS B760M DDR4 satin almak icin bizimle iletisime geciniz.
