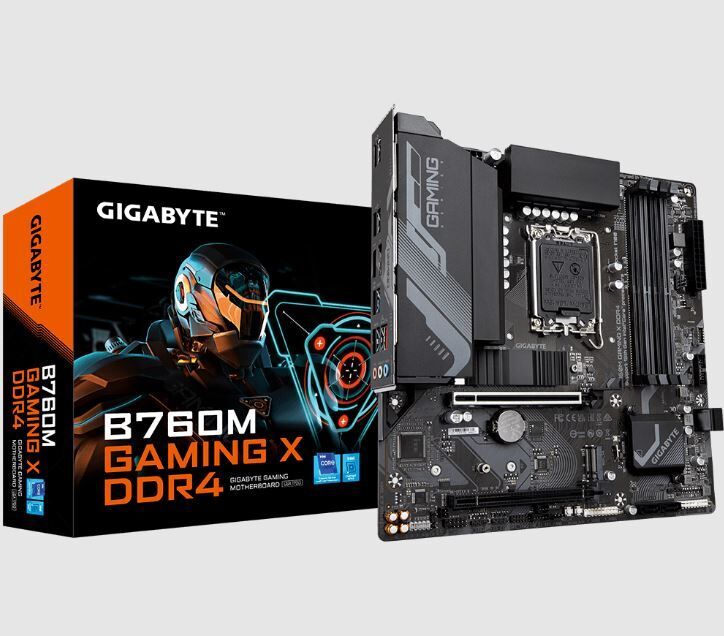

GIGABYTE B760M GAMING X DDR4 HDMI DP PCIE 4.0 1700p mATX
GIGABYTE B760M GAMING X DDR4 ariyorsaniz dogru yerdesiniz. Bu sayfada GIGABYTE B760M GAMING X DDR4 hakkinda tum teknik ozellikler yer almaktadir.
Teknik Bilgiler
| İşlemci Soket Tipi | 1700 |
| Chip Set | Intel B660 Express |
| Ram Slot Sayısı | 4 Adet |
| Max Ram Desteği | 64GB |
| RAM Tipi | DDR4 |
| Ram Frekans Hızı | 2400 MHz,4400 MHz,4500 MHz,4600 MHz,4700 Mhz,3800 MHz,4800 MHz,3866 MHz,4000 MHz,4933 MHz,5000 MHz,2666 MHz,4133 MHz,5133 MHz,4266 MHz,2133 MHz,3733 MHz,2933 MHz,3000 MHz,3200 MHz,3333 MHz,3400 MHz,3466 MHz,5333 MHz,3600 MHz,3666 MHz,4300 MHz |
| İşlemci Desteği | Intel Core i7,Intel Core i9,Intel Celeron,Intel Pentium,Intel Core i3,Intel Core i5 |
| Anakart Boyutu | Micro ATX |
| USB 3.2 | 4 Adet |
| USB 3.1 | Yok |
| USB 3.0 | Yok |
| USB 2.0 | 4 Adet |
| eSata | Yok |
| Bluetooth | Yok |
| PCI Express 4.0 x16 | 1 Adet |
| PCI Express 3.0 x16 | 1 Adet |
| PCI Express 2.0 x16 | Yok |
| PCI Express x16 | Yok |
| PCI Express x1 | 2 Adet |
| PCI Slot | Yok |
| M.2 Slotu | 1 Adet |
| Sata 6Gb/s | 2 Adet |
| D-Sub | Yok |
| DVI | Yok |
| HDMI | Var |
| DP (Display Port) | Var |
| Lan Hızı | 2.5 Gbit/ 1 Gbit/100 Mbit |
| Lan Çıkış Sayısı | 1 Adet |
| Wireless Bağlantı | Yok |
| Ses Chip Set | Realtek Audio CODEC |
| Ses Kanal Sayısı | 7.1 Kanal |
| Görüş Açısı (Yatay / Dikey) | 160/140 |
| Satış Garanti Süresi (ay) | 24 |
| EAN | 4719331851255 |
Detaylı Bilgiler
| Kategori | Özellik |
|---|---|
| CPU | LGA1700 socket: Support for 12th/13th/14th Gen Intel® Core™, Pentium® Gold, Celeron® L3 cache varies with CPU (Please refer "CPU Support List") |
| Chipset | Intel® B760 Express Chipset |
| Memory | DDR4 5333–2133 MT/s (O.C.) 4 x DDR DIMM sockets, up to 128 GB (32 GB per DIMM) Dual channel, ECC (non-ECC mode) & non-ECC support XMP support (*CPU/memory config may affect compatibility; see "Memory Support List") |
| Onboard Graphics | Intel® HD Graphics 1 x DisplayPort 4096x2304@60Hz (DP1.2, HDCP2.3) 1 x HDMI 4096x2160@60Hz (HDMI2.1, HDCP2.3) Support for up to 3 displays |
| Audio | Realtek® Audio CODEC, HD Audio, 2/4/5.1/7.1-channel S/PDIF Out (*configurable via software) |
| LAN | Realtek® 2.5GbE LAN (2.5G/1G/100M) |
| Expansion Slots | CPU: 1 x PCIe x16 (PCIe4.0 x16) Chipset: 1 x PCIe x16 (PCIe3.0 x4) |
| Storage Interface | CPU: 1 x M.2 (2280 PCIe4.0 x4/x2) (M2A_CPU) Chipset: 1 x M.2 (22110/2280 PCIe4.0 x4/x2) (M2P_SB) 4 x SATA6Gb/s, RAID 0/1/5/10 support |
| USB | 1 x USB Type-C 3.2 Gen2 (internal) 5 x USB3.2 Gen1 (3 back, 2 internal) 1 x USB2.0/1.1 (back) 8 x USB2.0/1.1 (4 back, 4 internal) |
| Internal I/O Connectors | 1 x 24-pin ATX, 1 x 8-pin ATX12V CPU fan header, 3 system fan headers 2 x addressable LED, 2 x RGB LED headers 2 x M.2 Socket 3, 4 x SATA6Gb/s Front panel/audio/USB headers, TPM header, serial header 2 x Thunderbolt™ add-in connectors, Q-Flash Plus button, reset jumper, Clear CMOS 1 x USB Type-C header (USB3.2 Gen2), 1 x USB3.2 Gen1 header, 2 x USB2.0/1.1 headers |
| Back Panel Connectors | 3 x USB3.2 Gen1, 5 x USB2.0/1.1 1 x HDMI 2.0, 1 x DisplayPort, 1 x RJ-45 3 x audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage, Temperature, Fan speed, Water flow, Fan fail, Fan speed control (*depends on fan) |
| BIOS | 1 x 256 Mbit flash, AMI UEFI BIOS, PnP1.0a, DMI2.7, WfM2.0, SMBIOS2.7, ACPI5.0 |
| Unique Features | GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus (*features may vary) |
| Bundled Software | Norton® Internet Security (OEM), LAN bandwidth management software |
| Operating System | Windows 11 64-bit, Windows 10 64-bit |
| Form Factor | Micro ATX; 24.4cm x 24.4cm |
GIGABYTE B760M GAMING X DDR4 ile ilgili merak ettiginiz sorularin yanitini asagidaki detay tablosunda bulabilirsiniz. GIGABYTE B760M GAMING X DDR4 hakkinda daha fazla bilgi icin sayfayi incelemeye devam edin.
GIGABYTE B760M GAMING X DDR4 ile ilgili merak ettiginiz sorularin yanitini asagidaki detay tablosunda bulabilirsiniz. GIGABYTE B760M GAMING X DDR4 hakkinda daha fazla bilgi icin sayfayi incelemeye devam edin.
GIGABYTE B760M GAMING X DDR4 ile ilgili merak ettiginiz sorularin yanitini asagidaki detay tablosunda bulabilirsiniz. GIGABYTE B760M GAMING X DDR4 hakkinda daha fazla bilgi icin sayfayi incelemeye devam edin.
GIGABYTE B760M GAMING X DDR4 ile ilgili merak ettiginiz sorularin yanitini asagidaki detay tablosunda bulabilirsiniz. GIGABYTE B760M GAMING X DDR4 hakkinda daha fazla bilgi icin sayfayi incelemeye devam edin.
GIGABYTE B760M GAMING X DDR4 satin almak icin bizimle iletisime geciniz.
