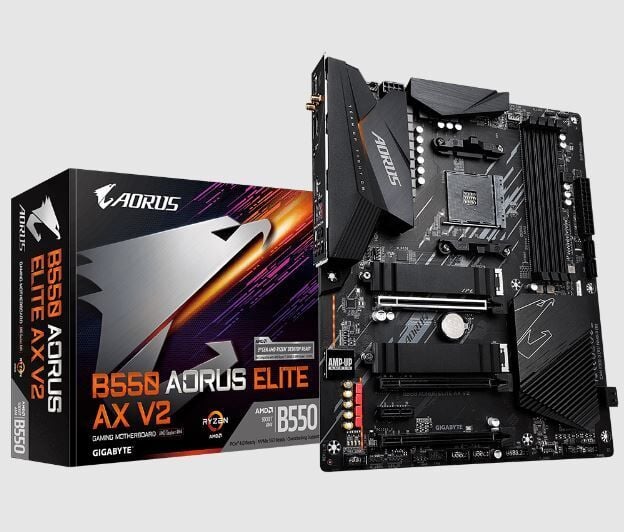

GIGABYTE B550 AORUS ELITE v2 DDR4 HDMI DP PCIe 16X v4.0 AM4 ATX
GIGABYTE B550 AORUS ELITE v2 ariyorsaniz dogru yerdesiniz. Bu sayfada GIGABYTE B550 AORUS ELITE v2 hakkinda tum teknik ozellikler yer almaktadir.
Teknik Bilgiler
| İşlemci Soket Tipi | AM4 |
| Chip Set | AMD B550 |
| Ram Slot Sayısı | 4 Adet |
| Max Ram Desteği | 128GB |
| RAM Tipi | DDR4 |
| Ram Frekans Hızı | 4000 MHz,4733 MHz,2400 MHz,2666 MHz,2933 MHz,3200 MHz,3466 MHz,3600 MHz,2133 MHz |
| İşlemci Desteği | Ryzen 5,Ryzen 3,Ryzen 7,Ryzen 9 (Soket AM4) |
| Anakart Boyutu | ATX |
| USB 3.2 | 8 Adet |
| USB 3.1 | Yok |
| USB 3.0 | 4 Adet |
| USB 2.0 | 6 Adet |
| eSata | Yok |
| Bluetooth | Yok |
| PCI Express 4.0 x16 | 1 Adet |
| PCI Express 3.0 x16 | 2 Adet |
| PCI Express 2.0 x16 | Yok |
| PCI Express x16 | Yok |
| PCI Express x1 | Yok |
| PCI Slot | Yok |
| M.2 Slotu | 1 Adet |
| DVI | Yok |
| HDMI | Var |
| DP (Display Port) | Yok |
| Lan Hızı | 10/100/1000Mbps |
| Lan Çıkış Sayısı | 1 Adet |
| Satış Garanti Süresi (ay) | 24 |
| EAN | 4719331809904 |
Detaylı Bilgiler
| Kategori | Özellik |
|---|---|
| CPU | AMD Socket AM4, support for AMD Ryzen™ 5000 Series/5000 G-Series/4000 G-Series/3000 Series/3000 G-Series Processors (Please refer "CPU Support List" for more information) |
| Chipset | AMD B550 |
| Memory | 4 x DDR4 DIMM sockets, up to 128 GB (32 GB per DIMM) Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz Dual channel memory architecture ECC & non-ECC support Extreme Memory Profile (XMP) support |
| Onboard Graphics | 1 x DisplayPort, max resolution 5120x2880@60Hz (DP1.4, HDCP2.3, HDR) 1 x HDMI port, max resolution 4096x2160@60Hz (HDMI2.1, HDCP2.3, HDR) Maximum shared memory: 16 GB |
| Audio | Realtek® ALC1200 codec, High Definition Audio, 2/4/5.1/7.1-channel Support for S/PDIF Out |
| LAN | Realtek® 2.5GbE LAN chip (2.5/1/0.1 Gbps) |
| Wireless | Intel® Wi-Fi 6 AX200, Dual-Band 2.4/5GHz, BLUETOOTH 5, 11ax 160MHz, up to 2.4 Gbps |
| Expansion Slots | 1 x PCIe x16 (CPU): AMD Ryzen™ 5000/3000 Series support PCIe4.0 x16, G-Series support PCIe3.0 x16 1 x PCIe x16 (Chipset, PCIEX2): PCIe3.0 x2 1 x PCIe x16 (Chipset, PCIEX1_2): PCIe3.0 x1 1 x PCIe x1 (Chipset, PCIEX1_1): PCIe3.0 x1 |
| Storage Interface | 1 x M.2 Socket 3 (CPU, 2242/2260/2280/22110, SATA & PCIe4.0 x4/x2, G/Series PCIe3.0 x4/x2) 1 x M.2 Socket 3 (Chipset, 2242/2260/2280/22110, SATA & PCIe3.0 x4/x2) 4 x SATA 6Gb/s connectors (RAID 0/1/10 supported) |
| USB | CPU: 2 x USB 3.2 Gen2 Type-A (red), 2 x USB 3.2 Gen1, 1 x USB 2.0/1.1 (back panel) Chipset: 1 x USB Type-C™ (internal), 1 x USB 3.2 Gen1 (back), 2 x USB 3.2 Gen1 (internal), 2 x USB 2.0/1.1 (back), 4 x USB 2.0/1.1 (internal hub) |
| Internal I/O Connectors | 1 x 24-pin ATX main power 1 x 8-pin ATX 12V power 2 x M.2 Socket 3 4 x SATA 6Gb/s 1 x CPU fan header, 1 x water cooling CPU fan header, 3 x system fan headers 1 x CPU cooler LED/RGB header 2 x Addressable LED headers, 2 x RGB LED headers 1 x Front panel header, 1 x front panel audio header 1 x USB Type-C™ header (USB 3.2 Gen1), 1 x USB 3.2 Gen1 header, 2 x USB 2.0/1.1 headers 1 x TPM header (2x6 pin), 1 x Clear CMOS jumper |
| Back Panel Connectors | 1 x DisplayPort 1 x HDMI 2 x SMA antenna connectors (2T2R) 2 x USB 3.2 Gen2 Type-A / USB 3.2 Gen1 (red, CPU) 3 x USB 3.2 Gen1, 2 x USB 2.0/1.1 1 x Q-Flash Plus button 1 x RJ-45, 1 x optical S/PDIF Out 5 x Audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage, Temperature, Fan speed, Water cooling flow rate, Overheating warning, Fan fail warning, Fan speed control *Fan speed control depends on installed fan |
| BIOS | 1 x 256 Mbit flash, AMI UEFI BIOS PnP1.0a, DMI2.7, WfM2.0, SMBIOS2.7, ACPI5.0 |
| Unique Features | APP Center*, @BIOS, EasyTune, RGB Fusion, Smart Backup, System Information Viewer, Q-Flash, Q-Flash Plus *Application support may vary by motherboard model |
| Bundled Software | Norton® Internet Security (OEM), LAN bandwidth management software |
| Operating System | Windows 11 64-bit, Windows 10 64-bit |
| Form Factor | ATX; 30.5cm x 24.4cm |
GIGABYTE B550 AORUS ELITE v2 ile ilgili merak ettiginiz sorularin yanitini asagidaki detay tablosunda bulabilirsiniz. GIGABYTE B550 AORUS ELITE v2 hakkinda daha fazla bilgi icin sayfayi incelemeye devam edin.
GIGABYTE B550 AORUS ELITE v2 ile ilgili merak ettiginiz sorularin yanitini asagidaki detay tablosunda bulabilirsiniz. GIGABYTE B550 AORUS ELITE v2 hakkinda daha fazla bilgi icin sayfayi incelemeye devam edin.
GIGABYTE B550 AORUS ELITE v2 ile ilgili merak ettiginiz sorularin yanitini asagidaki detay tablosunda bulabilirsiniz. GIGABYTE B550 AORUS ELITE v2 hakkinda daha fazla bilgi icin sayfayi incelemeye devam edin.
GIGABYTE B550 AORUS ELITE v2 ile ilgili merak ettiginiz sorularin yanitini asagidaki detay tablosunda bulabilirsiniz. GIGABYTE B550 AORUS ELITE v2 hakkinda daha fazla bilgi icin sayfayi incelemeye devam edin.
GIGABYTE B550 AORUS ELITE v2 ile ilgili merak ettiginiz sorularin yanitini asagidaki detay tablosunda bulabilirsiniz. GIGABYTE B550 AORUS ELITE v2 hakkinda daha fazla bilgi icin sayfayi incelemeye devam edin.
GIGABYTE B550 AORUS ELITE v2 satin almak icin bizimle iletisime geciniz.
