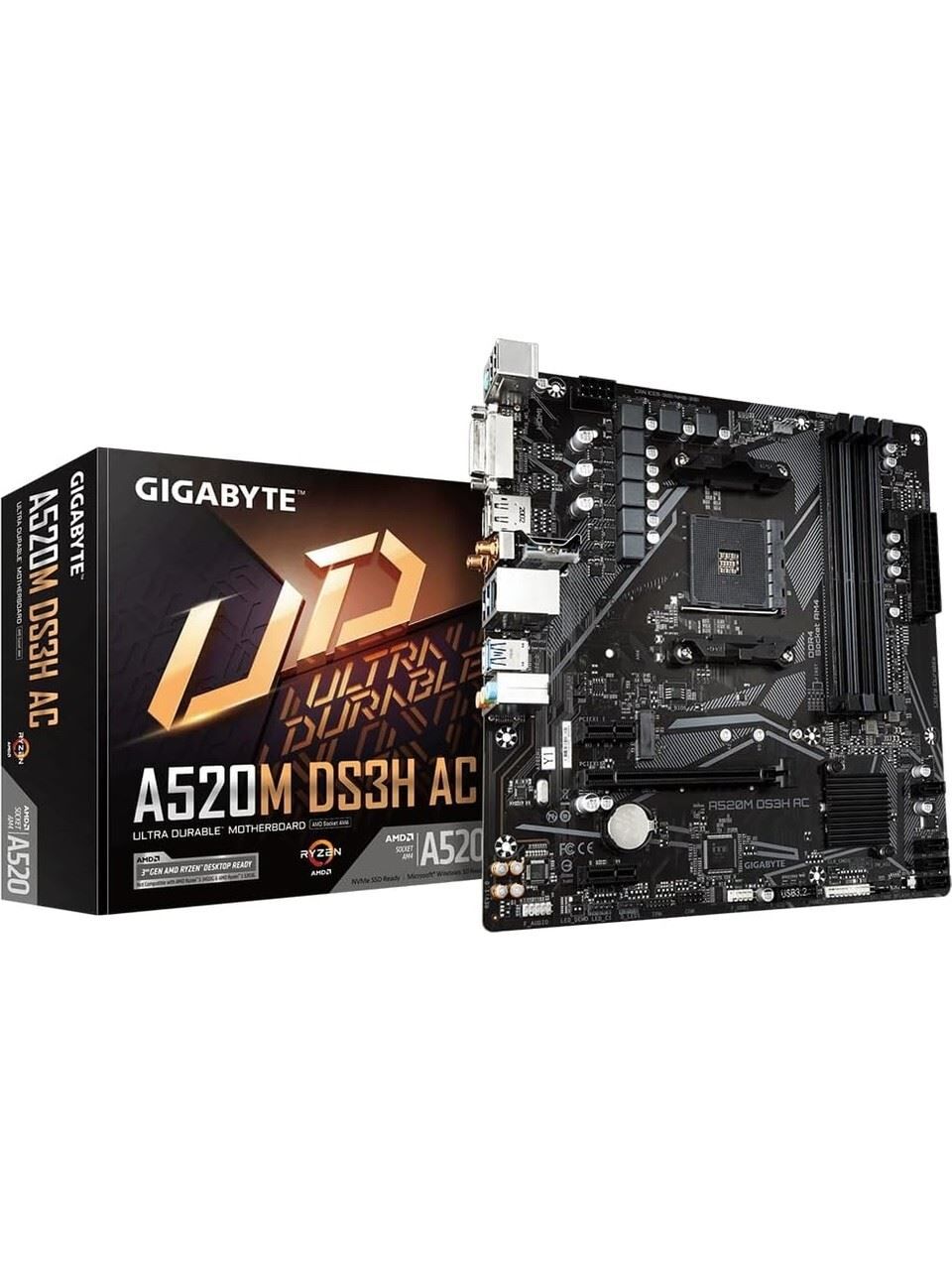

GIGABYTE A520M-DS3H-AC DDR4 HDMI DP PCIE 4.0 AM4 mATX WIFI
Marka: GIGABYTE | Kategori: Bilgisayar Bileşenleri | Grup: Anakartlar | Alt Grup: Amd Anakartlar
₺4.214 + KDV
Stokta var, şimdi sipariş ver hemen kargoda
Kategori
Marka
Stok Kodu
9703
Barkod Kodu
4719331810696
Garanti Süresi
24 Ay
Fiyat
87,22 USD + KDV
Havale
4.956,17 TL
(%2,00 havale indirimi)
*5.057,31 TL den başlayan taksitlerle!
Tahmini Kargo Süresi :
GIGABYTE A520M-DS3H-AC DDR4 HDMI DP PCIE 4.0 AM4 mATX WIFI
GIGABYTE tarafından üretilen bu model, Amd Anakartlar segmentine yönelik tasarlanmış performanslı bir üründür. Tüm teknik detaylar ve özellikler aşağıda yer almaktadır.
Teknik Bilgiler
| İşlemci Soket Tipi | AM4 |
| Chip Set | AMD A520 |
| Ram Slot Sayısı | 2 Adet |
| Max Ram Desteği | 64GB |
| RAM Tipi | DDR4 |
| Ram Frekans Hızı | 4733 MHz,4600 MHz,4400 MHz,4000 MHz,3600 MHz,3300 MHz,3200 MHz,2933 MHz,2666 MHz,2400 MHz,2133 MHz |
| İşlemci Desteği | Ryzen 3 |
| Anakart Boyutu | Micro ATX |
| USB 3.2 | 4 Adet |
| USB 3.1 | Yok |
| USB 3.0 | Yok |
| USB 2.0 | 2 Adet |
| PCI Express 4.0 x16 | Yok |
| PCI Express 3.0 x16 | 1 Adet |
| PCI Express 2.0 x16 | Yok |
| PCI Express x16 | 3 Adet |
| PCI Express x1 | 2 Adet |
| PCI Slot | Yok |
| DVI | Var |
| HDMI | Var |
| Wireless Bağlantı | Var |
| Satış Garanti Süresi (ay) | 24 |
| EAN | 4719331810696 |
Detaylı Bilgiler
| Özellik | Detay |
|---|---|
| CPU | AMD Socket AM4, support for: AMD Ryzen™ 5000 / 5000 G / 4000 G / 3000 & 3000 G-Series Processors (Refer to "CPU Support List") |
| Chipset | AMD A520 |
| Memory | 4 x DDR4 DIMM sockets, up to 128 GB (32 GB per DIMM) Ryzen 5000 G / 5000 / 3rd Gen Ryzen: DDR4 4400(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz 3rd Gen Ryzen with Radeon Graphics: DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz Dual channel architecture, ECC & non-ECC support, XMP supported |
| Onboard Graphics | 1 x DVI-D (max 1920x1200@60Hz) 1 x DisplayPort (max 5120x2880@60Hz, DP1.4, HDCP2.3, HDR) 1 x HDMI (max 4096x2160@60Hz, HDMI2.1, HDCP2.3, HDR) Support for up to 3 displays, Maximum shared memory 16 GB |
| Audio | Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel *7.1-channel requires software configuration |
| LAN | Realtek® GbE LAN (1 Gbps / 100 Mbps) |
| Wireless Communication Module | Intel® Dual Band Wireless-AC 3168 (PCB rev. 1.0/1.2/1.3), 802.11a/b/g/n/ac 2.4/5 GHz, Bluetooth 4.2 Intel® Wireless-AC 9260 (PCB rev. 1.1), 802.11a/b/g/n/ac 2.4/5 GHz, Bluetooth 5.1, 11ac 160MHz AzureWave Wi-Fi AW-CB304NF (PCB rev. 1.4), 802.11a/b/g/n/ac 2.4/5 GHz, Bluetooth 5.0 |
| Expansion Slots | CPU: 1 x PCIe x16 (PCIe3.0, x16) Chipset: 2 x PCIe x1 (PCIEX1_1, PCIEX1_2) |
| Storage Interface | CPU: 1 x M.2 Socket 3 (2242/2260/2280 SATA & PCIe3.0 x4/x2) Chipset: 4 x SATA 6Gb/s, RAID 0/1/10 supported |
| USB | CPU: 4 x USB 3.2 Gen1 (back panel) Chipset: 2 x USB 3.2 Gen1 (internal), 4 x USB 2.0/1.1 (2 back, 2 internal) |
| Internal I/O Connectors | 1 x 24-pin ATX main power 1 x 8-pin ATX 12V 1 x CPU fan header, 2 x system fan headers 1 x addressable LED header, 1 x RGB LED header 1 x M.2 Socket 3, 4 x SATA 6Gb/s 1 x front panel, 1 x front panel audio 1 x USB 3.2 Gen1 header, 1 x USB 2.0/1.1 header 1 x TPM header (2x6 pin) 1 x serial port header, 1 x Clear CMOS jumper 1 x Q-Flash Plus button *All fan headers support AIO_Pump/Pump/high-performance fans (up to 2A/12V @24W) |
| Back Panel Connectors | 1 x PS/2 keyboard/mouse 1 x DVI-D, 1 x DisplayPort, 1 x HDMI 2 x SMA antenna connectors (1T1R) 4 x USB 3.2 Gen1, 2 x USB 2.0/1.1 1 x RJ-45 3 x audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage, Temperature, Fan speed, Overheating & Fan fail warnings, Fan speed control* (*depends on cooler installed) |
| BIOS | 1 x 128 Mbit flash, AMI UEFI BIOS, PnP1.0a, DMI2.7, WfM2.0, SMBIOS2.7, ACPI5.0 |
| Unique Features | APP Center*, @BIOS, EasyTune, RGB Fusion, Smart Backup, System Information Viewer, Q-Flash Plus, Q-Flash *Application support may vary by model |
| Bundled Software | Norton® Internet Security (OEM), LAN bandwidth management software |
| Operating System | Windows 11 64-bit, Windows 10 64-bit |
| Form Factor | Micro ATX; 24.4cm x 24.4cm |
GIGABYTE ürün ailesinden diğer modelleri de inceleyebilir, siparişiniz için bize ulaşabilirsiniz.
Benzer ürünlerle karşılaştırmak için GIGABYTE A520M-DS3H-AC DDR4 teknik özelliklerini inceleyebilirsiniz.
Stok durumu ve güncel fiyat bilgisi için GIGABYTE A520M-DS3H-AC DDR4 ürün sayfasını takip edebilirsiniz.
GIGABYTE A520M-DS3H-AC DDR4 ile ilgili teknik sorularınızı müşteri hizmetlerimize iletebilirsiniz.
