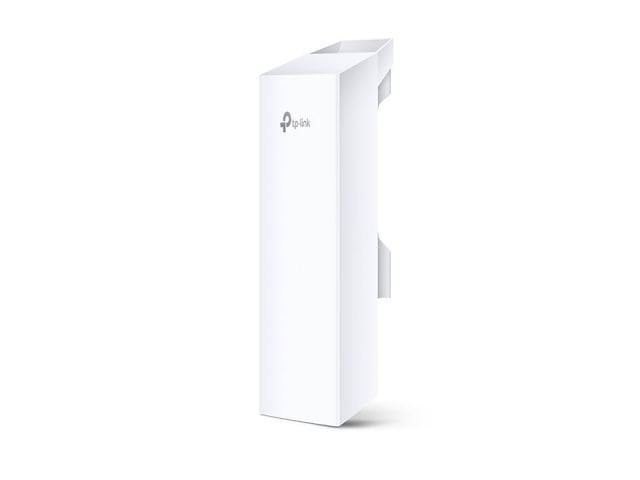

CPE510 300Mbps 5GHz Dış Mekan Access Point
2.507,92 TL
Kategori
Marka
Stok Kodu
CPE510
Garanti Süresi
24 Ay
Fiyat
64,80 USD + KDV
* 2.507,92 TL den başlayan taksitlerle!
| DONANIM ÖZELLİKLERİ İşlemci Qualcomm Atheros Enterprise AR9350B 560MHz CPU, MIPS 74Kc Bellek 64MB DDR2 RAM, 8MB Flash Arabirim 1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in) 1 10/100Mbps Shielded Ethernet Port (LAN1, Passive PoE Passthrough) 1 Grounding Terminal 1 Reset Button Boyutlar ( W x D x H ) 224 x 79 x 60 mm Anten Tipi Built-in 13dBi 2x2 Dual-polarized Directional Antenna Beam Width: 45° (H-Plane) / 30° (E-Plane) Note: For more details, please refer to datasheet Koruma 15KV ESD Protection 6000V Lightning Protection Güç Tüketimi 13 Watts Max Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable. Güç Kaynağı Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins) Voltage range: 16-27VDC Enclosure Outdoor ASA stabilized plastic material IPX5 waterproof Certification KABLOSUZ ÖZELLİKLERİ Kablosuz Standartları IEEE 802.11a/n (with Pharos MAXtream disabled) Kablosuz Hızı Up to 300Mbps (40MHz,Dynamic) Up to 144.4Mbps (20MHz,Dynamic) Up to 72.2Mbps (10MHz,Dynamic) Up to 36.1Mbps (5MHz,Dynamic) Özel Protokol TDMA Mode (with Pharos MAXtream enabled) Frekans 5.15~5.85GHz Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used. Alıcı Hassasiyeti • 802.11a: 54M: -75dBm, 48M: -76dBm, 36M: -83dBm, 6-24M: -95dBm • 802.11n: MCS15: -73dBm, MCS14: -74dBm, MCS13: -76dBm, MCS12: -80dBm, MCS11: -83dBm, MCS10: -88dBm, MCS9: -90dBm, MCS8: -93dBm, MCS7: -73dBm, MCS6: -74dBm, MCS5: -76dBm, MCS4: -80dBm, MCS3: -83dBm, MCS2: -88dBm, MCS1: -90dBm, MCS0: -93dBm İletim Gücü 27dBm/500mw (Adjustable power by 1dBm) Note: Maximum transmission power may vary across different channels depending on the limitations of the countries or regions in which the device is used. YAZILIM ÖZELLİKLERİ Kablosuz Konfigürasyonlar Pharos MAXtream TDMA Technology 802.11a/n Modes Selectable Channel Width: 5/10/20/40MHz Automatic Channel Selection Transmission Power Control Dynamic Frequency Selection (DFS) WDS Enable/Disable Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152- bit WEP Encryption SSID Broadcast Enable/Disable Multi-SSID with VLAN Tagging (AP mode only) Distance/ACK Timeout Setting Wireless MAC Address Filter Wireless Advanced: > Beacon Interval/RTS Threshold/Fragmentation >Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia Yönetim Discovery and Remote Management via Pharos Control application HTTP/HTTPS Web-based management System Log SNMP Agent(v2c) Ping Watch Dog Dynamic DDNS SSH Server Sistem Araçları Wireless Signal Quality Indicators: Signal Strength/Noise/Transmit CCQ/CPU/Memory Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP Spectrum Analyzer Speed Test Ping Traceroute Sistem Düzeyindeki Optimizasyonlar Optimized IGMP Snooping/Proxy for multicast applications Hardware watch dog DİĞERLERİ Sertifika CE, FCC, RoHS, IPX5 Paket İçeriği Outdoor Wireless CPE 24V 1A Passive PoE Adapter Pole Mounting Straps AC Power Cord Installation Guide Sistem Gereksinimleri Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux. Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended. Ortam Operating Temperature: -30°C~70°C (-22?~158?) Storage Temperature: -40?~70? (-40?~158?) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~95% non-condensing POE ADAPTÖR ÖZELLİKLERİ Arabirimler 1 AC Jack with Earth Ground 1 10/100Mbps Shielded Ethernet Port (Power + Data) 1 10/100Mbps Shielded Ethernet Port (Data) Boyutlar (H X W X D) 110*57*33.5mm Buton Remote Reset Button Çıkış 24VDC, 1.0A Max +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet) Çıkış Voltajı 24VDC(+4,5pins; -7,8pins) Giriş 100-240VAC, 50/60Hz Giriş Akımı 0.8A Max @ 100VAC Giriş Voltajı 100VA~240VAC @ 50Hz~60Hz Güç Durum LED'leri 0~0.8A: Green 0.8A~1.0A: Red Sertifikalar CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark Verimlilik >80% | |
| Standart | IEEE 802.11N,IEEE 802.11A |
| Data transfer hızı | 300MBPS |
| Radyo Frenkansı | 5GHZ |
| Güvenlik | WPA2,WPA |
| Fonksiyon | ACCESS POINT |
| Çalışma Modu | ACCESS POINT |
| Splitter | YOK |
| Erişim mesafesi | 100+ |
| EAN | 6935364070922 |
Bu ürüne ilk yorumu siz yapın!
